泡沫橡胶压缩试验夹具

概述

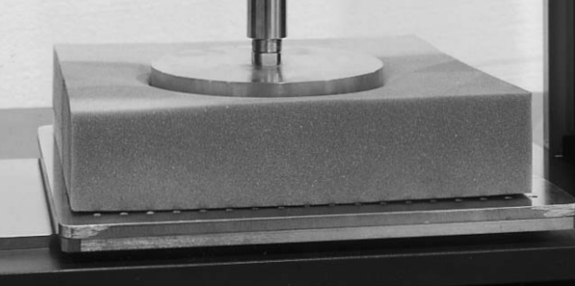

该夹具适用于模制的橡胶泡沫和聚氨酯泡沫样品的压缩试验，测试样品由较大的板材取芯或成型。泡沫样品的压缩测试夹具由直径为200mm的上压盘和400 mmx 400 mm尺寸的下部支撑板组成，下支撑板包含直径为 6.5 毫米的孔，间距为 20 毫米，穿孔的作用在测试过程中允许空气从泡沫中逸出。适用于橡胶泡沫和聚氨酯泡沫的常见测试包括压缩到指定的挠度或试验力。

特点

特点1：适用于1kN以下试验力泡沫橡胶和聚氨酯泡沫样品的压缩试验。
特点2：下支撑板具有的排气孔作用在测试过程中允许空气从泡沫中逸出。
特点3：操作简单，维护保养方便。

规格

1kN
