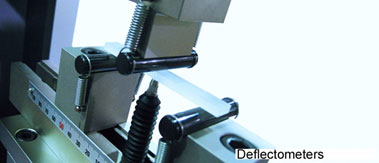

3点弯曲试验用挠度测定装置

概述

一种测定弯曲试验中试件挠曲量的位移测定装置。线性仪表接触试件下部，直接测量弯曲挠曲量。适用压头规格为R5×W34 mm（半径×宽度），支辊规格为R5×W34或R2×W34，支辊跨距为25~200 mm。

12-1-1-0

特点

特点1：测量范围为0~30 mm。

特点2：测定范围≤0.3 mm时，精度±1.5 μm；测定范围0.3 mm~最大测定点，精度为指示值的±0.5%。

特点3：适用标准JIS K6911，JIS K7171（ISO 178）和JIS K6902。

规格

10 KN
